M2 | 1.3343 | SKH51 | SKH9 | W6Mo5Cr4V2

Application range：

Application:

1. It is used to manufacture a variety of tools that require strong cutting and wear resistance, such as advanced die and screw die.

2. Tools that have certain requirements for toughness and complex shapes, such as milling cutters, drill bits, etc.

3. Cold forging die, fine die, powder pressing die, etc.

1. Viene utilizzato per fabbricare una varietà di strumenti che richiedono una forte resistenza al taglio e all'usura, come matrici e dadi avvitati.

2. Strumenti che hanno determinati requisiti per la robustezza e forme complesse, come frese, punte da trapano, ecc.

3. La stampaggio a freddo muore, muoiono bene, spremitura della polvere muore, ecc.

JIMI STEEL.,LTD info@xingxionggroup.com for more information about the M2 | 1.3343 | SKH51 | SKH9 | W6Mo5Cr4V2 steel.

JIMI STEEL.,LTD info@xingxionggroup.comper ulteriori informazioni sull'acciaio M2 | 1.3343 | SKH51 | SKH9 | W6Mo5Cr4V2.

Product manual

1.Equivalent grades/Gradi equivalenti

Germany(DIN)	USA(AISI)	Japan(JIS)		China(GB)
1.3343	M2	SKH51	SKH9	W6Mo5Cr4V2

2.Chemical Composition(%)/Composizion Chimica(%)

Grade	Chemical Composition
Grade	C	Si	Mn	Cr	Mo	W	V	P	S
1.3343	0.80-0.900.20	0.40	0.15-0.40	3.80-4.50	4.50-5.50	5.50-6.70	1.75-2.20	≤0.03	≤0.03
M2	0.80-0.900.20	0.40	0.15-0.40	3.80-4.50	4.50-5.50	5.50-6.70	1.75-2.20	≤0.03	≤0.03
SKH51
SKH9	0.80-0.900.20	0.40	0.15-0.40	3.80-4.50	4.50-5.50	5.50-6.70	1.75-2.20	≤0.03	≤0.03
W6Mo5Cr4V2	0.80-0.900.20	0.40	0.15-0.40	3.80-4.50	4.50-5.50	5.50-6.70	1.75-2.20	≤0.03	≤0.03

3.Heat Treatment/Trattamento termico

Forging: 1.100～900°C

Annealing: heating to 800-850 ° C, staying at this temperature for two to four hours, let it gradually cool in the furnace.

Quenching: preheating to 550-600 ° C, heating to 950 ° C, and then heating to a: 1,220 ~ 1250 ° C; b: 1,200 ° C ~ 1230 ° C. Hardened in oil, but the oil temperature must first moisturize 40-60 ° C (a. general tools; b. complex forms of tools requiring toughness)

Tempering: heating to 550-570 ° C, staying at this temperature, then cooling in still air, tempering must be repeated twice

Hardness: HRC 63 ° C or more.

Previous：No DataNext：No Data

Products Recommended

SKD5 | AISI | H21 | 1.2581

440C | 9Cr18Mo

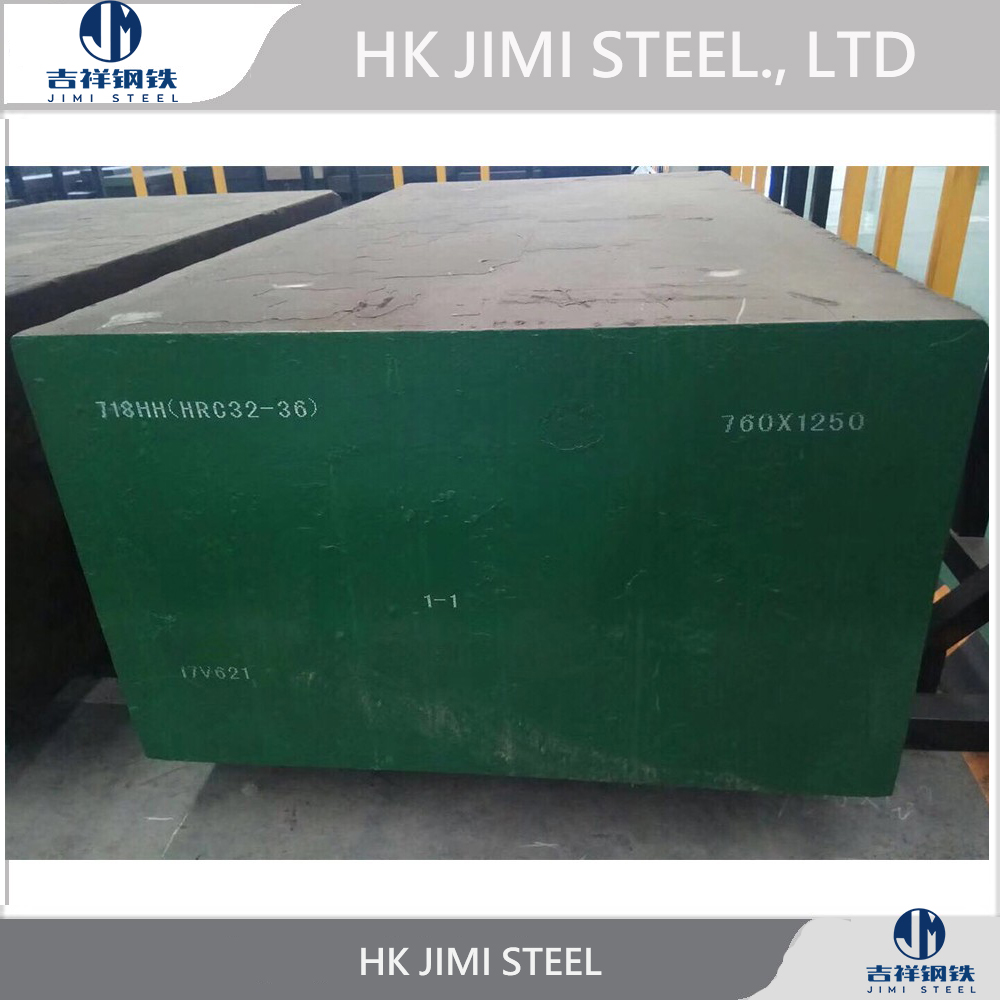

P20+Ni | 1.2738 | 718| 3Cr2MnNiMo
